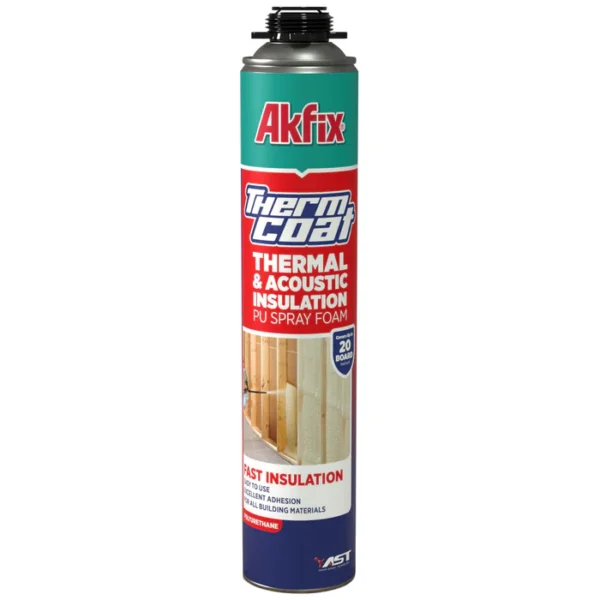

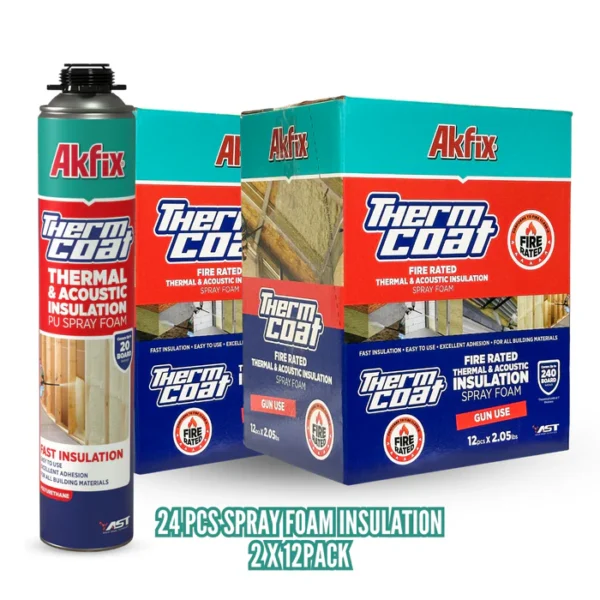

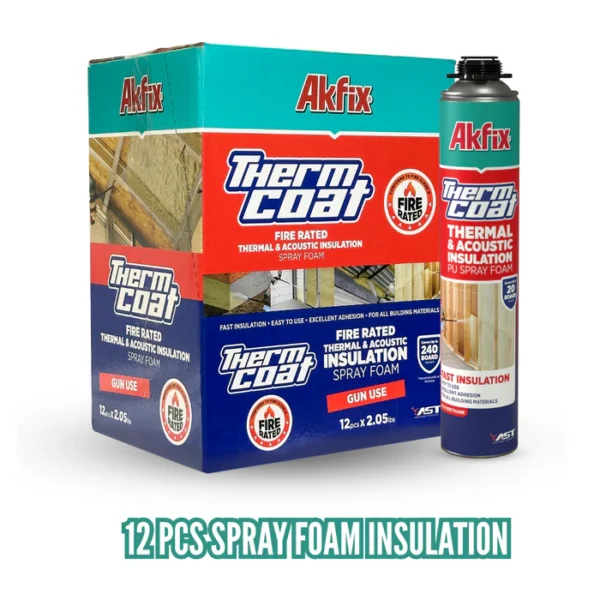

Akfix Thermcoat Thermal & Acoustic Insulation Spray Foam (Closed Cell)

Description

Thermal & Acoustic Insulation Spray

Product Description:

Akfix ThermCoat is a high-performance, single-component polyurethane spray foam that provides exceptional thermal and acoustic insulation for buildings, vehicles, and marine structures. It creates a seamless, gap-free layer that replaces traditional insulation materials like polystyrene boards, rock wool, and glass wool. Environmentally conscious, it contains no ozone-depleting propellants.

Key Features

Superior adhesion to most construction materials
Perfect for uneven and hard-to-reach surfaces
Thermal Conductivity: 0.025 W/(m·K)
R-Value: 5.66 per inch
Eliminates thermal bridges and dew points
Yield: Up to 20 board feet at 1-inch thickness (at ~16” application distance)
No mechanical fixings required after curing
Can be painted or coated
Fire Class: B3 (DIN 4102-1)

Application Areas

Buildings: roofs, attics, basements, walls, floors, ceilings, facades
Structural Elements: balconies, doors, window slopes, tanks, pipes, uneven surfaces
Vehicles: car bodies, trailers
Marine: boats, yachts, vessels, sea vehicles

Usage Instructions

Shake can thoroughly before use
Use Nozzle A for walls and Nozzle B for ceilings

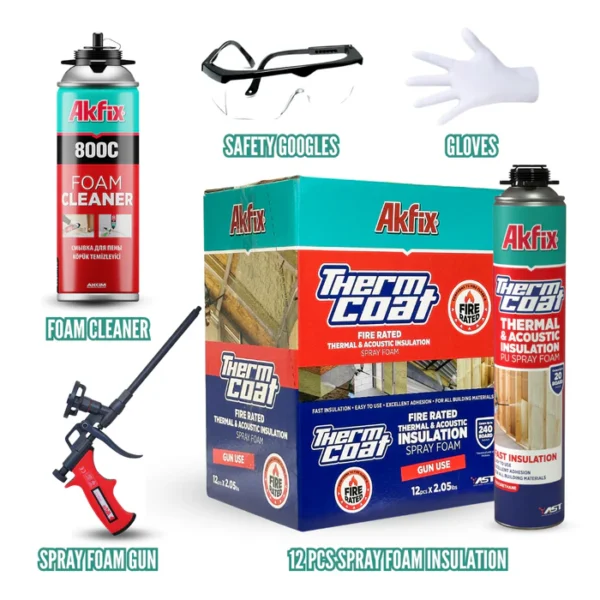

Attach can to gun; always spray can upside down
Vertical surfaces: Spray from 12–18 inches
Ceilings: Spray from 6–8 inches
Apply in minimum 3 layers to reach 2″ for optimal insulation
Clean gun and nozzles immediately after application
Curing time: 24 hours
Tack-free time: 4 minutes

Technical Specifications

Property                                 Value
Basis                                        Polyurethane Prepolymer
Curing                                     Mechanism Moisture cure
Specific Gravity                    0.94 ± 0.06 lb/ft³ (ASTM D1622)
Full Cure Time                     24 hours
Foam Color                           Blue
Compression Strength        4.35 psi (30 kPa) (DIN 53421)
Thermal Conductivity         0.025 W/m·K (DIN 52612)
R Value                                   5.66 per inch
Temperature Resistance (Cured) -103°F to +239°F
Application Temperature  41°F to 86°F
Optimal Can Temperature 68°F
Fire Classification              B3 (DIN 4102-1)
Yield                                      20 board feet @ 1 inch

Packaging & Storage

Net Weight: 2.05 lbs / 28.7 fl.oz
Shelf Life: 18 months (stored upright between 41°F–77°F)
Store at room temperature for at least 12 hours before use
Protect from frost and excessive heat

Safety & Handling

Contains Diphenylmethane-4,4’-Diisocyanate
Harmful by inhalation; irritates eyes, skin, and respiratory system
Use in well-ventilated areas only
Wear protective gloves and clothing
Pressurized container – Do not puncture or burn, even after use
Keep away from heat, sunlight, and ignition sources
Keep out of reach of children
